Machines

The Machines page is the central register of all equipment assets in the organization. It displays machines in a card-based grid layout, where each card shows a photo or placeholder image alongside essential identification details such as the asset code, name, group classification, and registration number.

Machines List 0:19
How to View Equipment History 0:38

From this page you can browse the full machine inventory, search and filter by group or location, and perform quick actions such as viewing details, approving records, or managing tags.

Navigation: Main Menu → Equipment → Machines

Machine Card Details

Card ElementDescription
Machine Image Uploaded photo or placeholder image of the equipment
Asset Code Unique system-generated identifier (e.g., O004000202830003)
Asset Name / Tag User-assigned name or tag for quick identification
Group Hierarchy Classification path: Group / Sub-Group / Sub-Subgroup (e.g., OFFICE EQUIPMENTS / AC / WINDOW-AC)
REG Number Registration number for the equipment, where applicable

Card Actions

  • Approve (checkmark) — Approve the machine record or a pending action
  • Search / View — Open a detailed view of the machine record
  • Details (arrow) — Navigate to the full machine detail page with all tabs and history
  • Tag — Assign or manage tags for categorization and quick lookup

Filters

Use the filter controls at the top of the card grid to narrow the display:

  • Search — Free-text search across asset code, name, tag, and registration number
  • Group — Filter by equipment group (e.g., Office Equipments, Heavy Machinery)
  • Location — Filter by current allocated location or site
  • Status — Filter by machine status (e.g., Active, In Maintenance, Disposed)

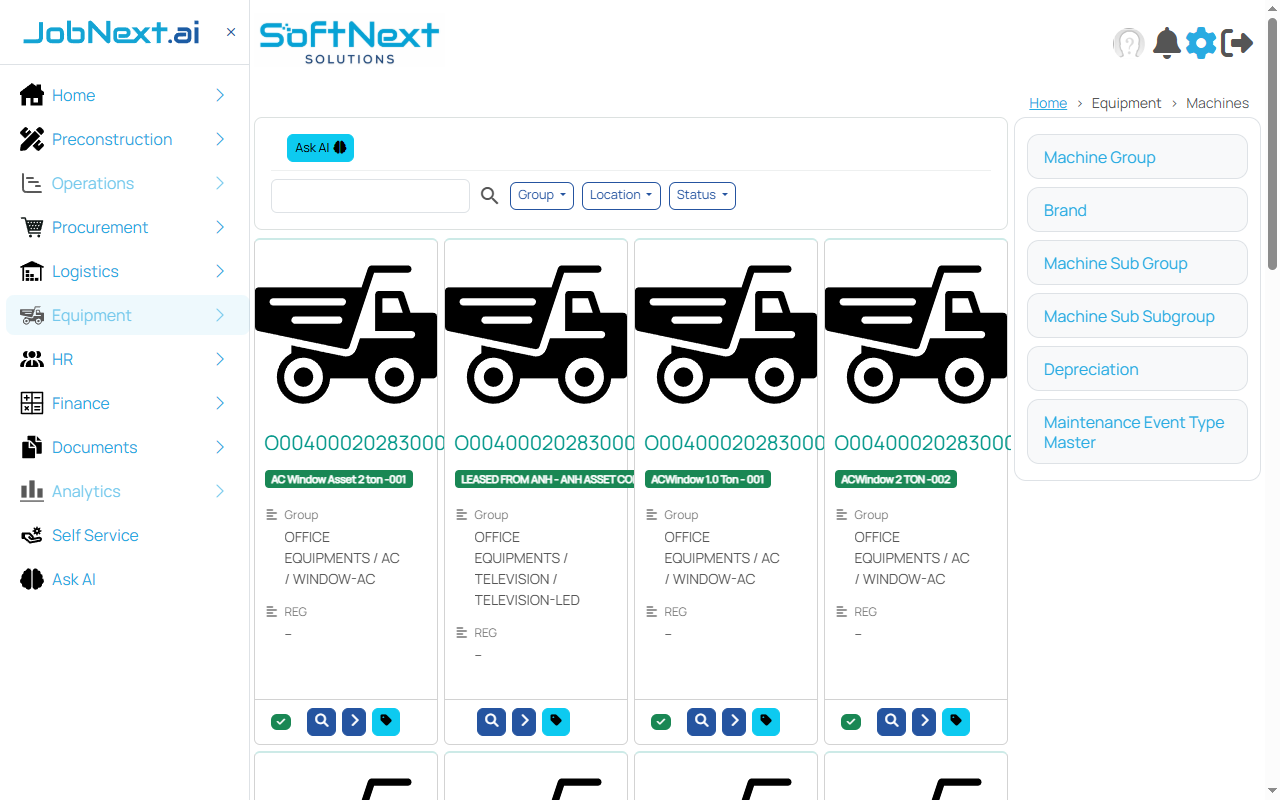

Equipment Machines page showing a card-based grid of machine assets with image placeholders, asset codes, names, group hierarchies, REG numbers, and action buttons
Machine card grid with filters for Search, Group, Location, and Status

3-Level Classification Hierarchy

Every machine belongs to a 3-level classification that determines its depreciation treatment, reporting category, and planning designation:

How to Record Equipment Inspection 0:38
Machine Group (Level 1) Motor Vehicles (Sub-Group) Office Equipment (Sub-Group) 4 Wheeler (Sub-Sub) 2 Wheeler (Sub-Sub) Scorpio SUV (Actual Asset) Depreciation rate set at Group level Multiple sub-groups per group Planning unit (before procurement) Created at capitalization
Planning vs. Actual Asset

The Sub-Sub Group (e.g., "Scorpio SUV") serves as the planning designation during budgeting and estimation. The actual machine record is only created when the equipment is procured and capitalized through the Capital MRN process. Multiple individual assets can belong to the same Sub-Sub Group.

Side Panel — Master Links

A side panel provides quick access to master configuration screens:

  • Machine Group — Define top-level equipment categories (depreciation rates configured here)
  • Brand — Manage equipment brand/manufacturer records
  • Machine Sub Group — Second-level equipment classifications
  • Machine Sub Subgroup — Third-level equipment classifications (planning designation)
  • Depreciation — Configure depreciation rates and methods per group
  • Maintenance Event Type Master — Define maintenance event types (preventive, corrective, breakdown)
